Conveying Equipment

Filquip has been providing conveying equipment systems for over 17 years for all types of powders and granular materials.

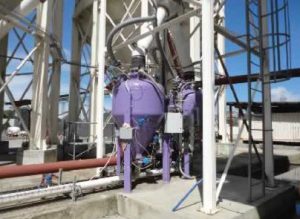

Pneumatic conveying systemsPneumatic Conveying

Filquip has specialist experience in Lean phase blower, Dense phase conveying and Vacuum conveying systems.

View Products


Bucket Elevatorbucket-elevator-product-photoRONCUZZI Bucket Elevators

Filquip is a supplier of Bucket Elevators for vertically conveying bulk solids in powder, granular chips or pellet forms.

  • Available in Carbon steel, Stainless steel 304 & 316.
  • Throughput rates up to 500m³ / hr.
  • Discharge heights up to 45m tall.
  • Material operating temperatures up to 180°C.

Open Bucket Elevators Brochure

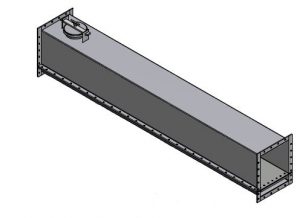

AirslidesAirslide designAir Slides

Filquip is not only a provider of airslide material to the bulk materials handling industry but also provides new air slide systems to meet the custom requirements your project.


Cement screw conveyorsTubular screw conveyors / Spiral conveyorWAM Screw Conveyors – Tubular

Filquip supplies a large range of WAM screw conveyors including Cement screw conveyors, Tubular, Horizontal, Vertical, Shaftless and High temperature options.

  • Tubular screw diameters of 114, 139, 168, 193, 219, 273, 323, 406, 457, 558 & 600mm.
  • Numerous inlet and outlet options including spigot, round and square flanges and universal.
  • Standard or Custom built screw conveyors including options for multiple inlets and outlets, reversible operation and with inspection hatches as required.

Open Tubular Screw Conveyors Brochure


Shaftless screw conveyorsTrough sludge screw conveyorsWAM Screw Conveyors – Trough

Filquip supplies a large range of WAM trough screw conveyors available in shafted and shaftless configurations including and high temperature options.

  • Trough screw diameters of 150, 200, 250, 300, 350, 400, 500 and 600mm.
  • Numerous inlet and outlet options including spigot, round and square flanges and universal.
  • Standard or custom built screw conveyors including options for multiple inlets and outlets, liners and wear bars, reversible operation and with inspection hatches as required.
  • Throughputs of up to 100m³ / hr

Open Trough Screw Conveyors Brochure

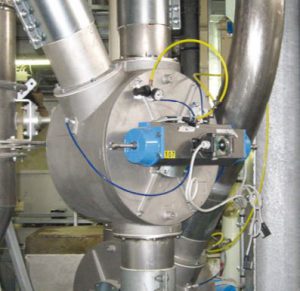

Diverter valvesDiverter Valves

Filquip supplies a range of in pipeline diverter valves in a range of mechanical operating layouts (Drum Type, Flap type, Pinch Valves, Oscilating Pipe Type etc). From 2” to 8” in size and diverting from 1 inlet to 2 outlets all the way up to 1 inlet with 10 outlets.

Read more

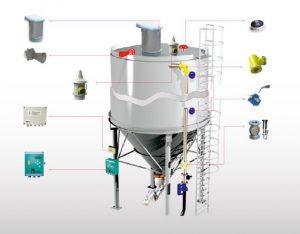

Silo overfill protectionSilo Overfill Protection System

Filquip can supply a tailored silo overfill protection system to suit any requirements preventing dangerous over pressurisation and over filling while eliminating dust emissions.

  • Avoid damage to silo and accessories.
  • Reduce the risk of air pollutions.
  • Eliminate the risk of filling the incorrect silo.
  • Start and stop the filter cleaner automatically.

Magnetic Separators and Tube/Pipe Magnets

The Magnetic Separators and Tube/Pipe Magnets are available from Filquip including manual and automated metal disposal from options for your system.

The automated magnetic separators work by magnetising metals contained in the product flow which become held to the side wall magnet, the side wall magnet flap then opens with the metals still magnetised, with the magnetic flap open over the discharge chute demagnetisation occurs depositing the metals into the waste chute.

The automated magnetic separators come in three standard sizes:

Chute Magnet

  • 200mm x 350mm (Throughput 100 m3/hr)
  • 200mm x 650mm (Throughput 200 m3/hr)
  • 200mm x 950mm (Throughput 300 m3/hr)

The manual tube/Pipe Magnets are designed to intercept metals contained in the product flow and hold them to the magnetic body for cleaning and disposal. The tube or pipe magnets come in eight standard sizes:

  • 100mm Diameter (Throughput 10 m3/hr)
  • 150mm Diameter (Throughput 35 m3/hr)
  • 200mm Diameter (Throughput 85 m3/hr)
  • 250mm Diameter (Throughput 130 m3/hr)
  • 300mm Diameter (Throughput 200 m3/hr)
  • 400mm Diameter (Throughput 260 m3/hr)
  • 500mm Diameter (Throughput 310 m3/hr)
  • 600mm Diameter (Throughput 400 m3/hr)

Open the Magnetic Separators and Tube/Pipe Magnets Brochure

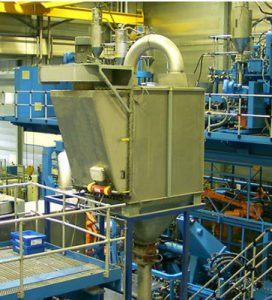

Dust CollectorsDust Collectors

Filquip can provide a specialised industrial dust collection and air venting system specified to the correct sizing and requirements of any silo or plant system.

View Products
