Insertable Dust Collectors

Filquip is a bulk materials handling equipment supplier of Insertable Dust Collectors. As the Queensland distributor and agent for WAM and their patented dust control systems which are renowned worldwide Filquip can provide insertable dust collector systems from small bins and silos to large quarry crusher hoppers. Insertable Dust Collectors are perfect for mounting on Belt Conveyor systems, Filquip is happy to calculate the dust collector required for Dust Control of your Belt Conveyor.


WAMAIR Insertable Dust CollectorsReplacement Insertable Dust CollectorsInsertable Dust Collectors

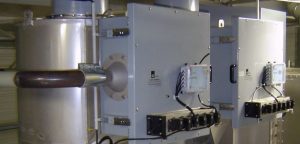

The WAM Insertable Dust Collectors range are polygonally shaped for a low profile fit onto hoppers, bins and silos. The filters elements are inserted horizontally or vertically with a compressed air cleaning system integrated in the access door so the cleaning tubes do not need to be removed to access the filters.

  • Available in Negative Pressure build (Up to -0.6bar / -60 kPa Vacuum).
  • Perfect for vacuum pneumatic conveying applications.
  • Air volumes up to 9,000m³/hr.
  • Filtration surface areas from 3m² to 54m².
  • Optional vertical or horizontal filter elements.
  • Robust stainless steel 304 body. 316SS Option available.
  • Available as a hazardous area dust collector.
  • Available with integrated extraction fanset.
  • Available with Electronic Differential Pressure Meter.

The WAMAir Insertable Dust Collector has maintenance free automatic reverse air jet cleaning of the cartridges.

Open Wamair Insertable Dust Collectors Brochure

Open Wamair Insertable Dust Collectors Flyer

Insertable Dust Collectors
















Rectangular insertable dust collectorWamair polygonal dust collectorWamair Polygonal Dust Collectors

The Wamair polygonal dust collector is a flanged dust collector designed for dust control in virtually all industrial sectors with its lower profile build.

  • Air volumes up to 9,000m³/hr.
  • Filtration surface areas from 3m² to 70m².
  • Optional vertical or horizontal filter elements.
  • Robust stainless steel 304 body.
  • Available as a hazardous area dust collector.

The Wamair has maintenance free automatic reverse air jet cleaning of the cartridges.

Open Wamair Polygonal Brochure




Dust filter bagsReplacement dust collector cartridgesFilter Replacements

Filquip can supply dust filter bags or cartridges for almost any system. We pride ourselves on being able to deliver solutions for the dirtiest, stickiest, hottest and nastiest products. General enquiries and challenges to find solutions to dust collector and bag house problems are welcomed.


Round and Square Flange Rotary VlavesTorex Rotary Valves RVS RVCTOREX Rotary Valves

Filquip provides a range of TOREX rotary valves to provide an airlock on a dust collector outlet, meter solids from a hopper or silo or place product into a blower pneumatic conveying system.

  • Drop through and Blow through options in Cast iron, Stainless Steel 304 & 316, Chromed, Teflon and Nickel plated.
  • Round inlet diameters of 150,200,250 & 300mm.
  • Square inlet dimensions of 150,200,250 & 300mm.
  • Rectangular inlet dimensions of 170×122, 238×135, 276×148, 377×196, 470×240 & 569x284mm.
  • Capacities of 2, 5, 10, 20, 35 & 80 L/Rev.
  • Working Temperatures from -40°C to 150°C.

Open Rotary Valves Brochure
