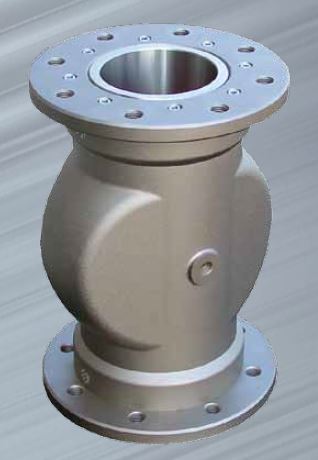

TOREX Pinch Valves VM
The TOREX pinch valve provides a valve seal which does not impede pneumatic conveying flow and is not as affected by the abrasive wear of pneumatic conveying. The main advantage of a pinch valve is its clear smooth bore which provides un-obstructed flow.
- Available in sizes 0.5”, 0.75”, 1”, 1.25”, 1.5”, 2”, 2.5”, 3”, 4”, 5”, 6” and 8” diameter.
- Available in diameter sizes 13mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100m, 125mm, 150mm, 200mm.
- Industrial or Food Grade Versions.
- Available with hardended bushes for abrasive products.
- Available in flanged or threaded connection configurations.
- System conveying pressure up to 3.5 bar.
- No product contact with the body only the internal sleeve
- Low air consumption.

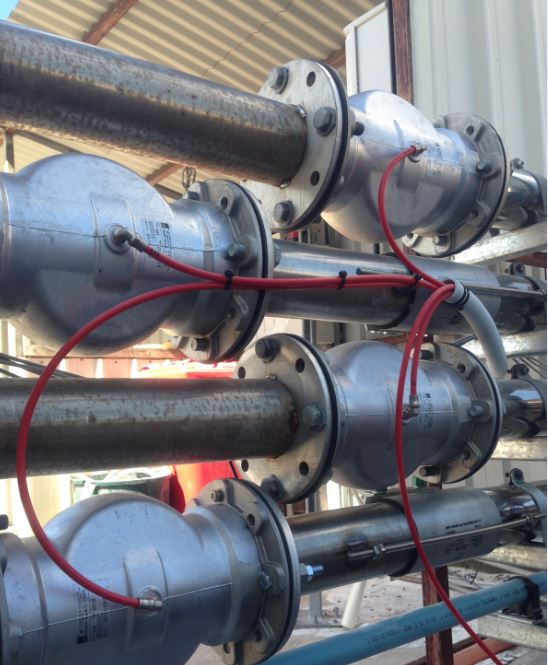

The pinch valve is operated by introducing compressed air into the threaded bore of the valve interior, the internal flexible sleeve is shaped to hermetically seal the passage. This valve type is a fail-open valve, when the compressed air to the sleeve is removed the valve opens.
Filquip also offers a pneumatic control panel to pair with pinch valves as an accessory.
View the Pinch Valves specifications datasheet and brochure
