OLI Electric Vibrators

Filquip is an authorised distributor of Visam and Oli electric vibrators. Available from 12V to 690V in three phase and single phase as well as DC options all with IP66 mechanical protection rating.

Open Oli Industrial Vibrators Datasheet


Electric VibratorsOli MVE Electric VibratorsMVE Oli Electric Vibrators Standard Range

The MVE standard range of OLI electric vibrators come in 2,4,6 & 8 pole versions.

  • Vibratory force (centrifugal force) output from 20Kg to 26,000Kg through a range of over 50 different model variants.
  • ATEX ExII3D and ETL, Class II, Division 2 certification for application in the presence of potentially flammable dusts in hazardous environments.
  • Vacuum-impregnated windings using Class F insulating materials.
  • Selected models available with IEC certification.

Open MVE Standard Datasheet

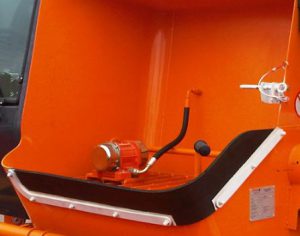

Electrical Vibrator with Stainless SteelMVE OLI Electric Vibrators Increased Safety Range

The MVE Increased Safety range of OLI electric vibrators come in 2, 4, 6 & 8 pole versions. They are suitable for applications requiring a higher degree of protection in hazardous environments.

  • Vibratory force (centrifugal force) output from 50Kg to 10,000Kg through a range of over 50 different model variants.
  • ATEX ExII2GD certification for application in the presence of potentially flammable dusts or gases, as well as with international IECEx certification.
  • Vacuum-impregnated windings using Class F insulating materials.

Open MVE Increased Safety Range Datasheet


Shale shaker mining electric vibratorExplosion proof vibratorMVE OLI Electric Vibrators Explosion Proof Range

The MVE explosion proof range of OLI electric vibrators come in 2, 4, 6 & 8 pole versions. They are suitable for applications requiring a higher degree of protection in hazardous environments.

  • Vibratory force (centrifugal force) output from 800Kg to 5,500Kg through a range of over 50 different model variants.
  • ATEX ExII2GD and ETL Class I, Division 1 and Class II, Division 1 certification, for application in the presence of potentially flammable dusts or gases for which explosion-proof design of the motor is specified. As well as with international IECEx certification.
  • Vacuum impregnated windings using Class F insulating materials.
  • Suitable for application on drilling fluid recovery systems in oil and gas extraction, as well as for sand dewatering equipment in fracking operations.

Open MVE Explosion Proof Range Datasheet

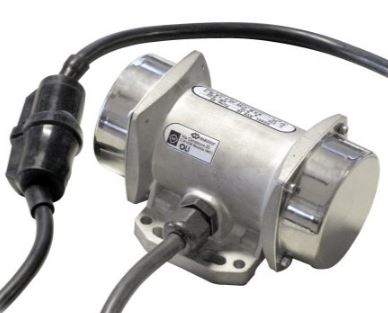

Small vibratorsOLI MVE Micro Range

The MVE micro range of OLI electric vibrators come in single phase and three phase versions

  • Vibratory force (centrifugal force) output from 5Kg to 44Kg.
  • Long life maintenance free bearings.
  • Designed for continuous use.

Open Micro Range Datasheet


DC vibratorOLI MVE DC Range

The MVE DC range of OLI electric vibrators come in 12 and 24VDC versions. These DC vibrators are typically used on mobile plant.

  • Vibratory force (centrifugal force) output from 50Kg to 1,500Kg.
  • Water tight and Hermetically enclosed.
  • Designed for continuous use.
  • Used on Concrete Pumping Truck Hopper for vibration.
  • Used on Asphalt walking floor trailers.
  • Used on Tipper trailers.

Open DC Vibrator Range Datasheet

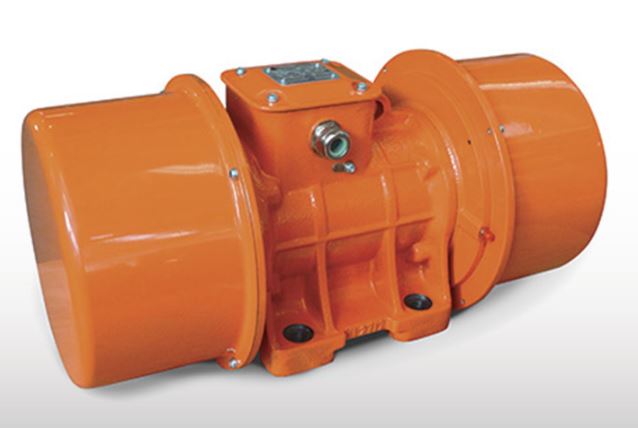

OLI MVE Milling Electric VibratorOLI MVE Milling Range

The MVE milling range of OLI electric vibrators come in 8 & 10 pole versions. Oli Vibrators are widely used and approved by leading OEMs from the flour milling industry worldwide.

  • Vibratory force (centrifugal force) output of 1,200Kg or 1,400Kg.
  • Designed to be applied on sieving machines which represent the core of any flour mill. MVE milling vibrators come with ATEX ExII3D certification for applications in the presence of potentially flammable dusts in hazardous environments.
  • Vacuum-impregnated windings using Class F insulating materials.

Open Milling Vibrator Range Datasheet

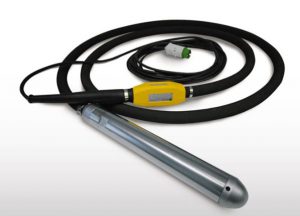

Concrete needle and vibratorConcrete PokerOLI Concrete Pokers and Converters

Filquip supplies a range of high frequency internal concrete pokers and converters. The VHN range is the standard line and the VHP range is a professional line.

  • Both ranges come with 5m protection hose, 10m electric cable and IP66 Key Pad Switch.
  • Available in head diameters from 38 – 65mm across the range.
  • Nominal Frequency of 12,000 Vibrations per minute.
  • Centrifugal force of 1,700 to 7,330N across the range.
  • The oli concrete needles come with an exclusive sealing system and hardened needle treatment.
  • Available in the 240V EWO high frequency model that has its own built in converter (Lightweight at only 3kg).
  • High frequency vibrator converters available in Single outlet – single phase, Dual outlet – single or three phase and Three outlet – three phase.

Open OLI Concrete Pokers Brochure

Open OLI Concrete Consolidation Brochure

Open OLI Concrete Pokers Datasheets

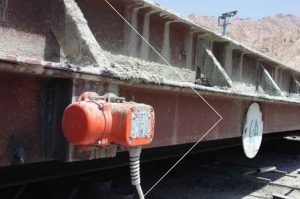

Formwork electric vibratorOLI Electric Concrete Consolidation Vibrators

Filquip is a supplier of High Frequency Electric Vibrators for concrete consolidation.

  • Vibratory force (centrifugal force) output from 294Kg to 2,600Kg.
  • Low speed vibrators for high density un-reactive concretes.
  • High speed vibrators for low density concretes where a high surface quality is required.
  • Designed for continuous use.

Visam Vibrators AustraliaVisam VibratorVisam Vibrators

Filquip is a supplier is Visam Vibrators and holds a range of stock in Australia.

Models available including:

  • Visam SPV – Low Speed Vibrators
  • Visam SPX – Low Speed Vibrators
  • Visam AMV – Mini Vibrators
  • Viam HFV – High Frequency Vibrators
  • Visam HFC – High Frequency Vibrators
  • Visam SPEx – ATEX and IECEX Vibrators
  • Visam SPF – Flange Mounted Vibrators
  • Visam VFV – Variable Frequency Vibrators
  • Visam VFC – Variable Frequency Vibrators
  • Visam DCV – Direct Current Vibrators
  • Visam SPC – Quick Release Vibrators
  • Visam EMC – Electronic Modular Converters

Open Visam Vibrators Datasheet


Vibrator cradleFormwork vibrator clampsVibrator Clamps and Cradles

The Clamps and Cradles are ideal for positioning vibrators on formwork in permanent locations while still being able to detach the vibrator and move it between forms, saving costs on vibrators.

  • CLW Series as a Clamp for wooden form works.
  • CLS Series as a Clamp for steel form works.
  • CRS Series as a Cradle for steel concrete moulds.

Open Manual Clamp Brochure


Vibrator mounting piecesVibrator Mounts

Filquip has a range of vibrator mounting channels and plates with pre-set studs or tapped holes to suit a range of vibrators.

Open Pneumatic Vibrator Channel Mount Brochure

Open Electric Vibrator Channel Mount Brochure

Open Impact Hammer Vibrator Mounting Plate Brochure

Electric Vibrator Channel Mounts




Truck Hydraulic VibratorsHydraulic VibratorsOli Hydraulic Vibrators

The MVO850 Hydraulic Rotary Vibrator generates very low amplitude high frequency vibration where a hydraulic circuit is available. The Oli Hydraulic Vibrators are robust, compact and easy to install on any equipment.

  • Designed for use on Truck Trailers and large hydraulic plant and equipment.
  • Working temperature from -20 Deg C to +60 Deg C.
  • Suitable for clays, fertilisers, granules, powders, manure, sludge and aggregates.
  • Vibratory Force (centrifugal force) up to 830kg.
  • Vibratory Force is adjustable relative to the working fluid pressure.
  • Working pressure from 15 bar to 300 bar (217 PSI to 4,350 PSI).
  • Vibration speeds from 700 RPM to 6,000 RPM (2.24L/min @ 700 RPM, 9.6L/min @ 3,000 RPM & 19.2L/min @ 6,000 RPM).
  • Maximum noise level 80 dBA.

Open Hydraulic Vibrator Datasheet
