Bentonite Centralised Industrial Vacuum System

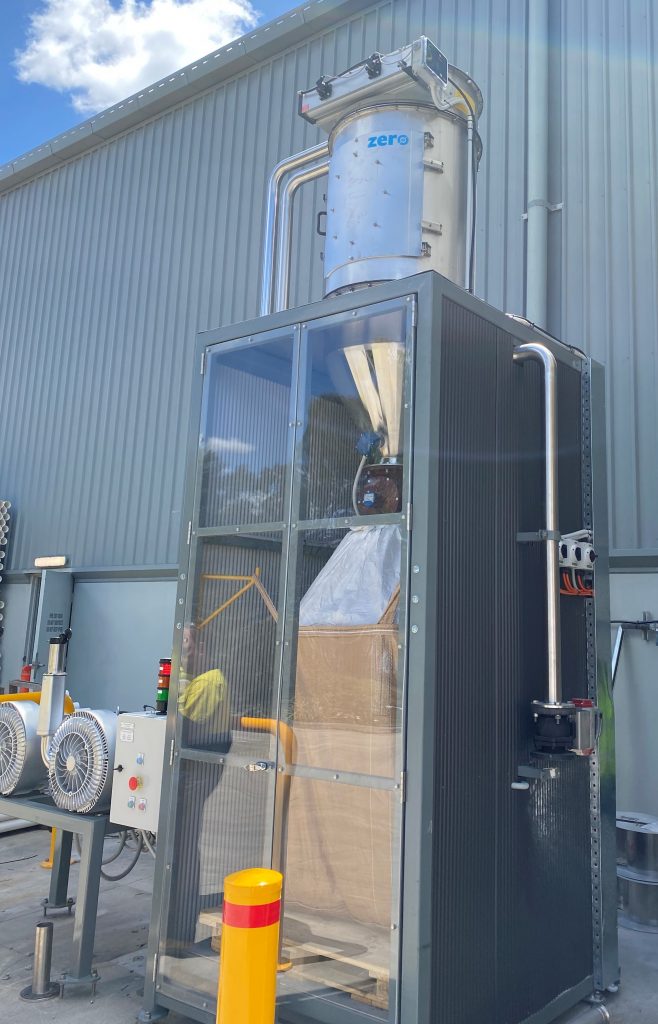

Filquip has supplied, installed and commissioned a Bentonite Centralised Industrial Vacuum System with 8 pickup points over the Bentonite Processing Plant.
The following equipment package was designed, supplied and commissioned:
- Installation of SS304 Piping, Eurac Pipe Clamps, Nozzle Heads and Wands.
- Twin 7.5kW Vacuum Blowers.
- Negative Pressure Dust Collector for the Filter Receiver (FNS3J22D).
- SS304 Support Frame – Customised to Site Location with Protection Doors.
- Rotary Valve Airlock for vacuumed feeding product into a bulk bag (RVR05.20).
The technical experience of Filquip in sizing the pipe runs and velocities has allowed the one Centralised Industrial Vacuum System to draw from these 8 locations through the complex production equipment layout of the plant.
