Bird Food Granules Vacuum Loader

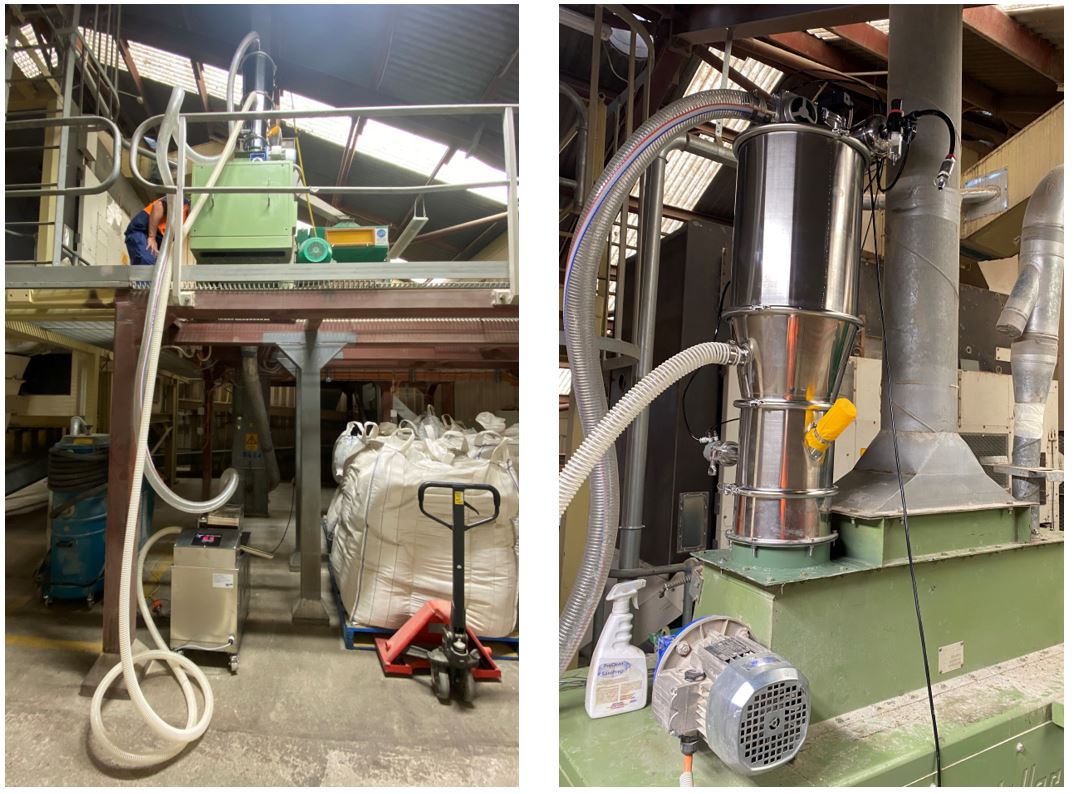

Filquip has designed, supplied and installed a new vacuum loader system for a Bird Food production facility to allow plant operators to convey the bird feed granules from bags at ground level up into the mill at the upper level without needing to lift or carry the bags up the stairs.
The following specifications were included for this FVC-1-NP Vacuum Loading System:
- Nominal 0.8 m3 / Hr Conveying Capacity (Based on dry granules)
- Polished stainless steel construction
- 5 Metres of food grade suction hose
- Stainless steel suction wand
- Inbuilt dust collection and filter pulse cleaning system with replaceable filter cartridges
- Configurable automatic suction and discharge cycle
- 240VAC Power Supply
- Air requirement: 25L/min (0.88 cfm) @ 5-6bar (Compressor not included)
- 12mm push in airline fitting connection point
