Dust Collectors, Replacement Filters, Filter Media and Equipment

Filquip is a bulk materials handling equipment supplier with specialist experience in industrial dust collection, air and fume filtration and liquid filtration. Filquip provides a range of Dust Collectors and Replacement Filters to many industries.

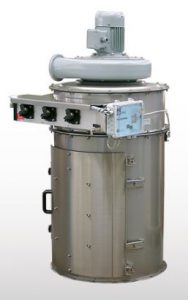

WAM Round Dust CollectorDust Collectors

Filquip has over 20 years industrial dust collection experience and is the Queensland distributor and agent for WAM and their patented dust collector systems which are renowned worldwide. Filquip can provide systems from small hopper dust vents to large quarry crusher dust collection.

View Products

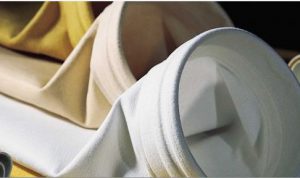

Baghouse dust filter bagsSnap cuff dust bagsDust Filter Bags

Filquip can supply dust filter bags for almost any collector unit. We pride ourselves on being able to deliver dust filter bag solutions for the dirtiest, stickiest, hottest and nastiest products. General enquiries and challenges to find solutions to dust collector and bag house problems are welcomed.

Snap cuff, Raw edge, Cord, A-Hanger, Grommet, Loop, Strap, Support ring, Rubber O-Ring, Disk bottom, Disk with wear strip, Flange, Hem, Sewn flat, Antafin, CS17, Excharge, Kleentes, Snaptex and Envelope type dust Bags available.

Ordering Your Bag Filters


Replacement Blower filter cartridgesBlower Filter Cartridges

Filquip supplies inlet filter cartridges for blowers in a variety of sizes and filtration media options.

  • Range up to 11,900 m³/hour air capacity.
  • Inner Diameters range 41, 63, 86, 104, 129, 165, 190, 244, 269, 368, 489, 636mm.
  • Standard cartridges available in felt media, other media options include paper and foam.
  • Foam pre-filters are available to order.

Open Blower Filters Datasheet


Rectangular Dust Collector Replacement FiltersDust Collector Replacement FilterFilter Cartridges

Filquip offers a range of filter cartridges for almost any collector unit. Filquip can manufacture filter cartridges to provide a solution to any cartridge filter problem. We pride ourselves on being able to deliver filtration solutions for the dirtiest, stickiest, hottest and nastiest products.

  • Snap ring, Bottom screw-in, Standard plain end, Flanged plain end, Tri-lobe style top cap options available.
  • Metal, Polymer/plastic cap and Moulded base matching pleat bottom cap options available.
  • HEPA filters and HVAC general filters available.

Some of the replacement dust collector filters we manufacture are compatible with:

  • Dustcotech replacement filters ES1000.
  • Dustcotech 126647 Filters
  • Clyde-Apac replacement filter cartridges.
  • Air Systems dust collector replacement filters.
  • Consonic Dust Filters.
  • Scutti Dust Collector Filters
  • Mix Dust Collector Cartridges.
  • Donaldson Siloair Replacement Cartridges.
  • Unicell Filters.
  • Torrit dust collector replacement filters.
  • Vac Truck Pencil Filters.
  • Portabatch Filters.
  • Trumpf Laser Cutter Filters.

General enquiries and challenges to find solutions to dust collector and bag house problems are welcomed.

Filquip Replacement Dust Collector Filter Cartridges Range

Ordering Your Cartridges


Vac Truck Replacement Filters

Vac Truck Replacement Filters

Filquip has extensive stocks of 155mm diameter by 1m long filter cartridges on the shelf and can make any Vac-Truck Filter Bags required for any model.

Filquip Vac Truck filters are made from spun bond polyester (240g/m2). We also carry special versions with advanced filter media for hazardous and special applications. Our Filters are generally more robust than the competitors due to our welded mesh metal core (Not Plastic) and advanced head manufacture made from our special rubberised compound (Not Polyurethane) which provides durability, flexibility and effective sealing.

Every filter head comes with a sealing snap band in the top ready for installation into your truck. The flexibility of our filter head compound allows the changing of the size of the sealing snap band to suit the Cell Plate Diameter of your Vac Truck.

The filters play a critical role in protecting the blower from damaging foreign materials. Good filters reduce the vacuum pressure required to be generated and results in less energy/fuel being required to operate the Vac Truck. Broken or low efficiency filters can result in the lobes of the blower being eroded adding extra maintenance and unexpected shut down costs.

Open Vacuum Truck Replacement Filters Flyer



Vac Truck Replacement Filters

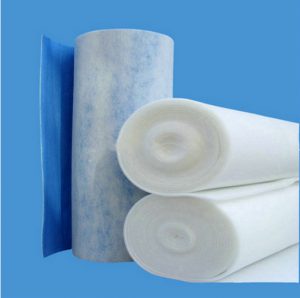

Spraybooth filter mediaFilter Media RollsFilter Media

Filquip offers a range of filter media for over spray and painting booths as well as for the manufacture of air intake filters.

Our range includes AFS100, AFS103, AFS200, AFS500, AFS-EC60 and more

  • Metal, Polymer/plastic cap and Moulded base matching pleat bottom cap options available.
  • HEPA filters and HVAC general filters available.

General enquiries and challenges to find solutions to dust collector and bag house problems are welcomed.

Ordering Your Cartridges


Hepa air intake for vacuum systemHepa Filter to pipeworkDucted Hepa Filter Box

The Filquip Hepa Filter air intake box is the ideal solution for providing clean air into your plant equipment process.

Developed for Fan and Vacuum Conveying intakes in industrial food processing plants the housing box is made from Stainless Steel with a pre-fitted outlet pipe spigot as requested by the customer.

The Filquip Hepa box system comes with:

  • Air Intake box in 304 or 316 Stainless Steel
  • A premium washable V-form pre-filter (Rated resistance 65Pa up to a maximum 3400 m3/hr airflow)
  • AstroCel 3 Hepa Filter H13 (Rated resistance 250Pa up to a maximum 4000 m3/hr airflow)
  • This pre and hepa filter system provides an extended life with greater than 99.99% Efficiency at 0.3 Micron.

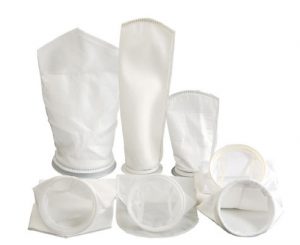

Liquid filtration vessel housingLiquid filter bagsLiquid Filters

Filquip supplies a large range of liquid filters including needle felts, nylon strainer mesh and metal strainer mesh. P1, P2, P3 & P4 Pong filter bag types available in a Polyloc top or Steel ring configuration.

Filquip supplies liquid filtration equipment and housings in Polypropylene, Carbon steel, Stainless steel 304 & 316 as well as Titanium and Hastelloy C options.


Mobile Welding Fume Collector

The Filquip Fume 200 is a mobile welding fume collector with 1 or 2 dirty air collection arms that can be positioned at the working space. The collector is designed to collect the harmsul substances in welding smoke and other fabricating activities which can include:

  • Gaseous toxic and harmful substance such as Carbon Monoxide, Ozone and Nitric Oxide;
  • Copper, Aluminium and Zinc which exist as smoke in the air;
  • Harmful particulate substances FexOy, Aluminium Oxide, Fluoride, Barium compounds, Chromium compounds, Nickel Oxide, Cadmium Oxide, Chromium Hemi Trioxide and Dioxide Thorium and so on;
  • Carcinogens such as Nickel Oxides, Chromium Oxide and so on;
  • Radioactive substances.

The dirty air is drawn in through the arm into the filter housing where it hits the flow distribution plates and changes direction.  Then the air flow goes upward which causes the heavier particles to drop out of the air flow before hitting the filter.  The remaining fine dust and fumes go through the filter cartridge and are filtered out. The clean air is exhausted through the exhaust silencer.

The pulse cleaning system cleans the cartridge and causes dust to fall into the collection tray which can be emptied.

The filter elements are horizontally loaded, the filter media is high efficiency Nano-web with fire retardant treatment in case of sparks which may pass into the fume collector. The filter media ensures the dust cleaning efficiency and prolongs the service life.

  • The mobile welding fume collector is a low noise, high efficiency and high air flow unit.
  • Available in the FUME-150 with 1500m3/hr airflow, 2.2kW Motor and 1 fume arm (Dimensions 740 x 1150 x 1285mm)
  • Available in the FUME-200 with 2000m3/hr airflow, 3.0kW Motor and 2 fume arms (Dimensions 740 x 1150 x 1285mm)
  • Available in the FUME-300 with 3500m3/hr airflow, 4.0kW Motor and 2 fume arms (Dimensions 740 x 1150 x 1725mm)
  • The unit comes on lockable wheels for mobility around the facility.
  • The unit comes complete with in-built reverse pulse cleaning ability.
  • Simple control panel provided for ease of operator use.

Open FVC Mobile Welding Fume Collector Brochure
