Venturi Suction Feeders

SF Venturi Suction Feeders

Filquip is a supplier of the SF series of Vacuum Venturi Suction Feeders which can also be known as Venturi Conveyors or Ring-Jets. These SF units are capable of moving granules, powders and liquids using the vacuum force generated by the unit.

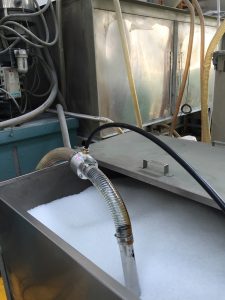

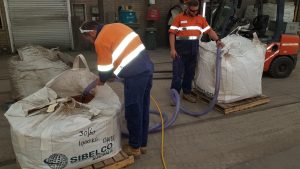

Suction Feeder Wand Transfer SystemPlastic pellet vacuum feeder

The Filquip SF Suction Feeder does not require any electricity and operates on compressed air alone. The specially designed internal high speed jets create a venturi motive air stream generating the suction which conveys the product.

  • Available in a range of sizes from 19mm bore to 64mm bore with throughputs up to 4.7m3/hr.
  • Used to pump liquids, granules or powders.
  • Manufactured from high grade aluminum alloy with Stainless Steel versions available.
  • Small footprint size. Convenient for transport and single person operation.
  • Simple installation, the only requirement is to connect compressed airline into the push-in connection socket on the feeder body.

The following table of data for the Filquip Suction Feeder Models is based on conveying dry granules such as Corn, Coffee Beans or Poly Beads.

Part Number Suction Feeder Air Connection Air Consumption @ 5bar Recommended Compressor Size Vacuum Pressure Maximum Throughput @ 2m (Dry Granules)
SF25-AL-KIT 25mm 8mm 0.6 Nm³/min 5.5kW 15kPa 0.9m³/hr
SF25-SS-KIT 25mm 8mm 0.6 Nm³/min 5.5kW 15kPa 0.9m³/hr
SF38-AL-KIT 38mm 12mm 1.3 Nm³/min 7.5kW 10kPa 2.5m³/hr
SF38-SS-KIT 38mm 12mm 1.3 Nm³/min 7.5kW 10kPa 2.5m³/hr
SF51-SS-KIT 51mm 16mm 1.6 Nm³/min 11kW 6kPa 3.2m³/hr
Maximum conveying distance 5m



Part Number Suction Feeder Suction Nozzle Hose (Food Grade) T-Bolt Clamp Stainless Steel Ball Valve Straight Adaptor Nylon Tubing Quick Coupler
SF25-AL-KIT Aluminium 25mm (1) 25mm (1) 25mm (4mtrs) 32-35mm (4) 1/4″ (1) 8mm x 1/4″ (1) 8mm (3) 1/4″ Nitto (1)
SF25-SS-KIT Stainless Steel 25mm (1) 25mm (1) 25mm (4mtrs) 32-35mm (4) 1/4″ (1) 8mm x 1/4″ (1) 8mm (3) 1/4″ Nitto (1)
SF38-AL-KIT Aluminium 38mm (1) 38mm (1) 38mm (4mtrs) 44-47mm (4) 1/2″ (1) 12mm x 1/2″ (1) 12mm (3) 1/2″ Nitto (1)
SF38-SS-KIT Stainless Steel 38mm (1) 38mm (1) 38mm (4mtrs) 44-47mm (4) 1/2″ (1) 12mm x 1/2″ (1) 12mm (3) 1/2″ Nitto (1)
SF51-SS-KIT Stainless Steel 51mm (1) 51mm (1) 51mm (5mtrs) 56-59mm (4) 1/2″ (1) 16mm x 1/2″ (1) 16mm (3) 1/2″ Nitto (1)

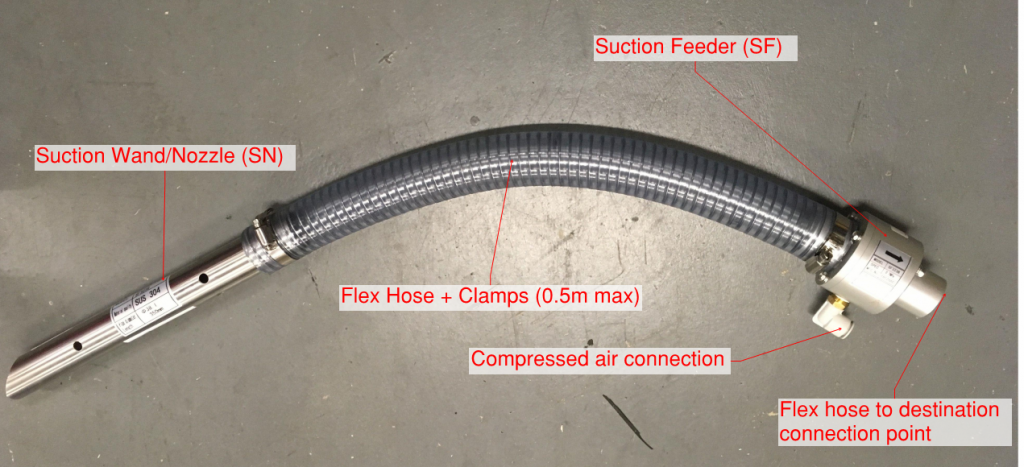

Filquip Suction Feeder Setup Instructions

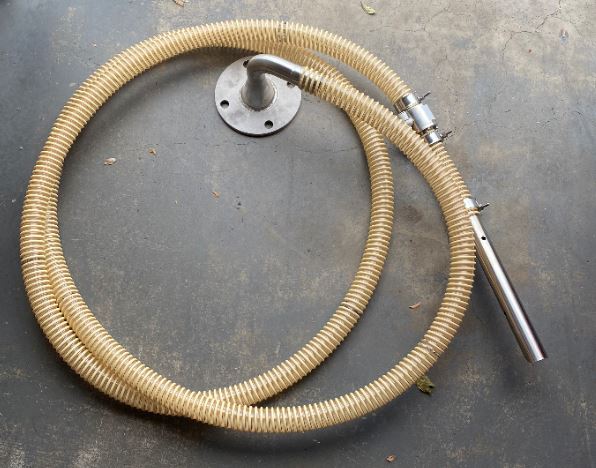

Filquip Venturi Suction Feeder Setup

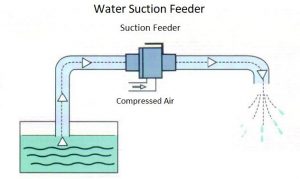

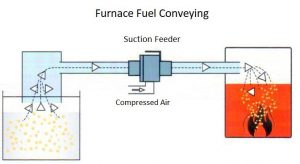

Pneumatic Conveying Suction Feeder - Fuel ConveyingPneumatic Water Pump

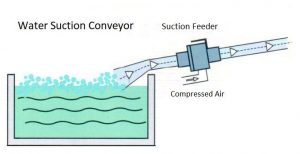

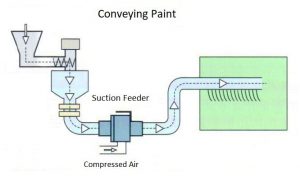

Suction Water Movement Pneumatic Conveying Suction Feeder - Paint
