Pneumatic Vibrators

Filquip is an authorised distributor of Oli pneumatic vibrators. Available in rotational and linear vibration force versions with a variety of models to suit any vibration application. With the Oli range of pneumatic vibrators, all you need is compressed air.


Ball type pneumatic vibratorOLI S-Type Ball Pneumatic Vibrators

The S-Type Pneumatic Ball Vibrator generates a low amplitude high frequency vibratory force and are particularly efficient with fine powders and granular materials. They are available in 8 sizes.

  • Vibratory Force (Centrifugal Force) output from 15Kg to 405Kg.
  • Vibration frequency adjusted by air pressure, 2 – 6 Bar.
  • Maintenance free design, comes with silencer and Air nipple.
  • Compliant with ATEX EX II 2DG cT(x), suitable in explosive environments. Operating noise reaches 90 dB(A).

Open S-Type Pneumatic Vibrator Datasheet

Open S-Type Pneumatic Vibrator Brochure

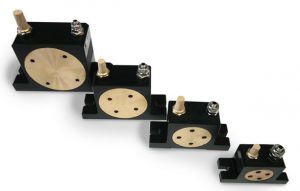

Roller type pneumatic vibratorOLI OR-Type Roller Pneumatic Vibrators

The OR-Type pneumatic roller vibrator generates a high frequency vibratory force with low air consumption and are particularly efficient in compaction and separation. They are available in 4 sizes.

  • Vibratory force (Centrifugal force) output from 188Kg to 783Kg.
  • Vibration frequency adjusted by air pressure, 2 – 6 Bar.
  • Maintenance free design, Comes with silencer and air nipple.
  • Compliant with ATEX EX II 2DG cT(x), suitable in explosive environments.

Open OR Type Pneumatic Vibrator Datasheet

Open OR Type Pneumatic Vibrator Brochure

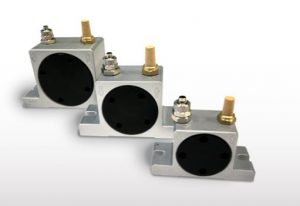

Pneumatic vibrator for concrete formsTurbine type quiet pneumatic vibratorOLI OT-Type Turbine Pneumatic Vibrators

The OT-Type pneumatic turbine vibrator generates a high frequency vibratory force at a high frequency and amplitude even with low air operating pressure. The OT Turbine pneumatic vibrators operate with significantly reduced noise output compared to roller or ball pneumatic vibrators. They are available in 12 sizes.

  • Vibratory force (Centrifugal force) output from 110Kg to 754Kg.
  • Vibration frequency adjusted by air pressure, 2 – 6 Bar.
  • Maintenance free design, Comes with silencer and air nipple.
  • Compliant with ATEX EX II 2DG cT(x), suitable in explosive environments. Silent hum in operation.

Open OT Type Pneumatic Vibrator Datasheet

Open OT Type Pneumatic Vibrator Brochure

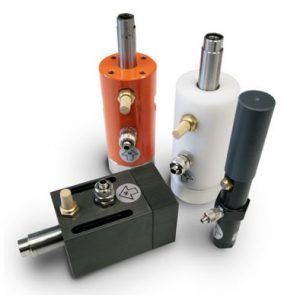

Linear pneumatic vibratorOLI F-Type Pneumatic Cushioned Linear Piston Vibrators

The F-Type pneumatic piston vibrator generates vibratory movement with wide amplitude oscillations and are particularly efficient in screening and conveying. They are available in 5 sizes.

  • Vibratory force output from 1Kg to 215Kg
  • Vibration frequency adjusted by air pressure, 2 – 6 Bar
  • Maintenance free design, Comes with silencer and air nipple.
  • Compliant with ATEX EX II 2DG cT(x), suitable in explosive environments.

Open F Type Vibrators Datasheet

Open F Type Vibrators Brochure

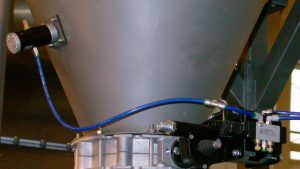

K type linear piston vibratorOLI K-Type Linear Internal Piston Pneumatic Vibrators

The K-Type Linear Piston Pneumatic Vibrator is light and compact while producing directional vibrations and are particularly efficient in compacting and detaching solids. They are available in 5 sizes.

  • Vibratory force (centrifugal force) output from 2.8Kg to 141Kg.
  • Vibration frequency adjusted by air pressure, 2 – 6 Bar.
  • Maintenance free design, comes with silencer and air nipple.
  • Compliant with ATEX EX II 2DG cT(x), suitable in explosive environments. Suitable for operating temperatures up to 200°C.

Open K Type Vibrator Datasheet

Open K Type Vibrator Brochure

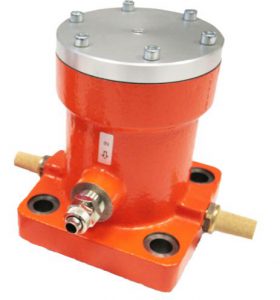

Pneumatic hammer vibratorImpact pneumatic vibratorOLI P-Type Pneumatic Impact Vibrators

The P-Type Linear Piston Pneumatic Vibrator is able to generate extremely high impact force and are particularly efficient at breaking crusts, bridges or rat holes on silos, hopper and pipes. They are available in 3 sizes.

  • Vibratory Force (Centrifugal Force) output from 294N to 3,250N.
  • Vibration frequency adjusted by air pressure, 2 – 6 Bar.
  • Compliant with ATEX EX II 2DG cT(x), suitable in explosive environments. Suitable for operating temperatures up to 200°C.

Open P Type Vibrator Datasheet

Open P Type Vibrator Brochure

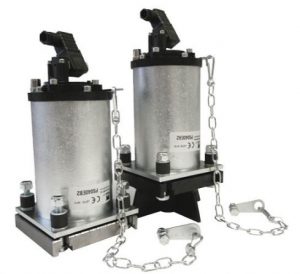

Hopper automatic hammer strikePneumatic shock hammerOLI Martshock PS Electro-Pneumatic Hammers

Martshock PS Electro-Pneumatic Hammers deliver a “hammer strike” type impact to impart mechanical energy to the walls of a silo, cone, hopper or truck body to dislodge the product. They are available in 3 sizes.

  • Imparts an impact energy of 4.2 to 153J.
  • Can be retrofitted without drilling the wall or emptying the bin.
  • Timer cards are available for hammer control. Electric, Pneumatic or Remote control available.

Open PS Hammers Datasheet

Open PS Hammers Brochure

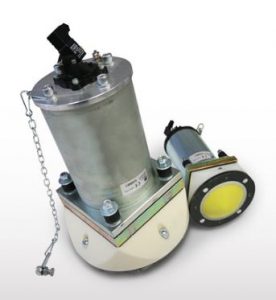

Picjet Pneumatic Electro HammerOli PJ Pneumatic HammerOLI Picjet PJ Electro-Pneumatic Hammer Blasts

Picjet PJ Electro-Pneumatic Hammers deliver a “hammer strike” type impact and compressed air jet to the walls of a silo, cone, hopper or truck body to dislodge the product. They are available in 3 sizes.

  • Imparts an impact energy of 4.2 to 153J.
  • Suitable for products that bridge and/or are hygroscopic.
  • Timer cards are available for hammer control. Electric, pneumatic or Remote control available.

Open PJ Hammers Datasheet

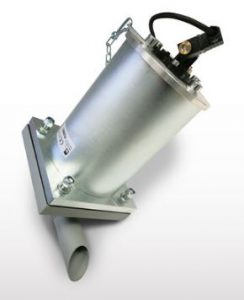

Gunjet air blasterOLI PG Air CannonOLI Gunjet PG Air Cannons

Gunjet PG Air Cannons deliver a blast of air to the walls of a silo, cone, hopper or truck body to dislodge the product and can be suitable for rectangular bins or operations where hammering and vibration is unsuitable. They are available in 3 sizes.

  • Imparts an impact energy of 3 to 153J.
  • Can be retrofitted without drilling the wall or emptying the bin.
  • Timer cards are available for air blast control. Electric, Pneumatic or Remote control available.

Open PG Air Cannons Datasheet

Open PG Air Cannons Brochure


Compressed air concrete vibratorsPneumatic Concrete ConsolidatorsOLI Pneumatic Concrete Consolidation Vibrators HFP

Filquip is a supplier of high speed pneumatic vibrators for concrete consolidation.

  • Vibratory force (Centrifugal force) output from 720Kg to 6,118Kg.
  • Low frequency vibration for large aggregate concrete.
  • High frequency vibration for concrete with fine granules.
  • No electrical components, only air required.

Open Pneumatic Concrete Consolidation Datasheet

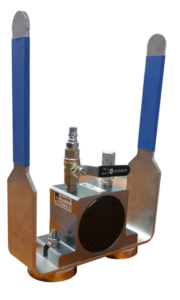

Magnets for mounting vibratorsVibrator Magnetic Mounting BaseMagBase MK2 & HD

The Filquip MagBase is a magnetic vibrator bracket that allows the user to apply vibration from an OR100, OT36S, OT36, OT30, S36 or S30 Pneumatic Vibrator to any ferromagnetic metal (Iron, Steel, Cobalt, Nickel).

The Filquip MagBase is made from Stainless Steel 304 and uses strong rare earth magnets to hold the vibrators against the steel formwork, hopper walls, silos or bins requiring vibrating.

  • Strong rare earth magnets hold the vibrator to the wall of the bin, hopper, silo or frame.
  • Great for testing the optimal position to mount a vibrator before permanent installation.
  • Ideal for moving around concrete moulds as they are easily detachable.
  • Heavy Duty build for operations where the magnetic vibrator setup will be constantly moved and the pneumatic connections need protection from being knocked

Open MagBase Brochure


Formwork vibrator clampVibrator ClampVibrator Clamps and Cradles

Vibrator clamps and cradles are ideal for positioning vibrators on formwork in permanent locations while still being able to detach the vibrator and move it between forms, saving costs on vibrators.

  • CLW series as a clamp for wooden form works.
  • CLS series as a clamp for steel form works.
  • CRS series as a weld-on cradle for steel concrete moulds.

Open Clamp Brochure

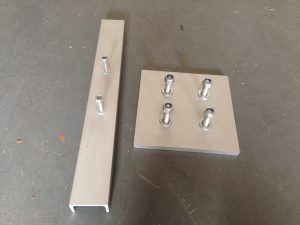

How to mount a vibratorVibrator Mounts

Filquip has a range of vibrator mounting channels and plates with pre-set studs or tapped holes to suit a range of vibrators.

Open Pneumatic Vibrator Channel Mount Brochure

Open Electric Vibrator Channel Mount Brochure

Open Impact Hammer Vibrator Mounting Plate Brochure
