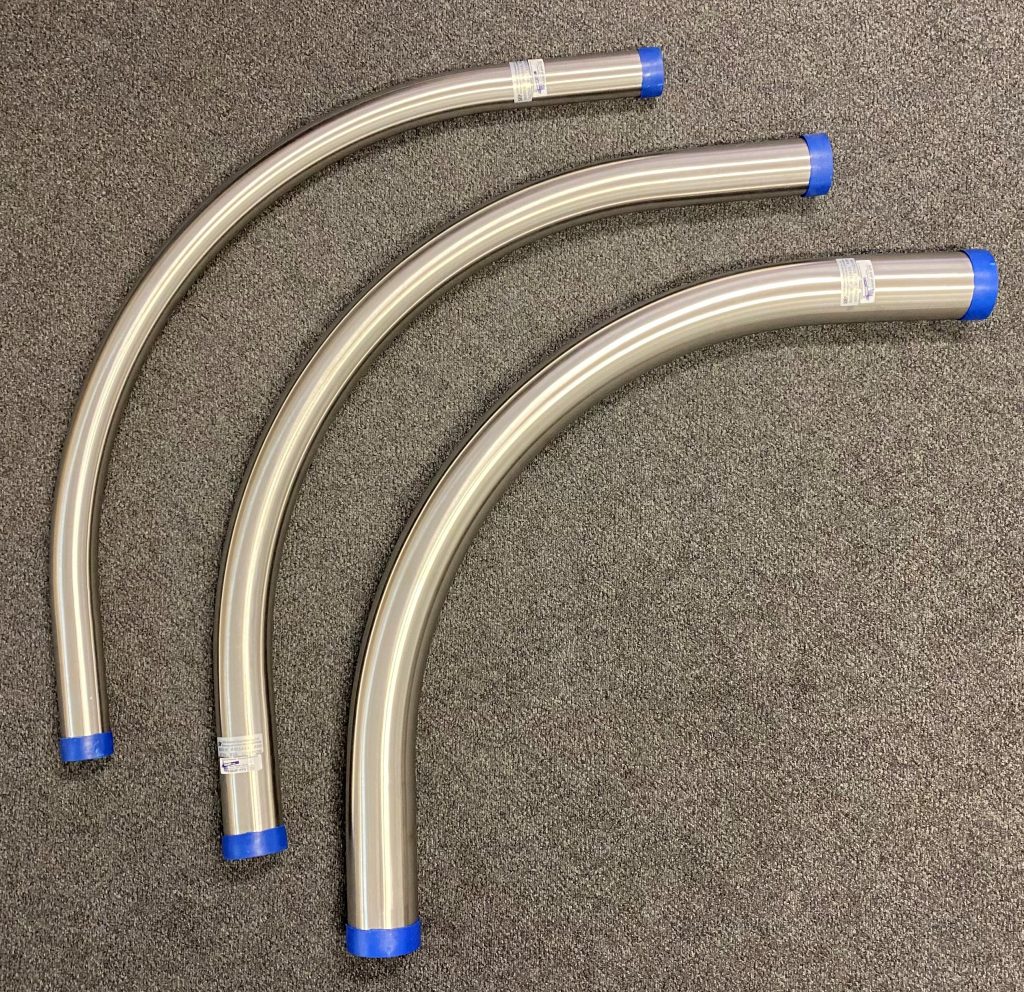

SS304 Long Radius Tube Bends

SS304 Long Radius Tube Bends

Filquip is pleased to announce we are now stocking 304 stainless steel tube/pipe long radius bends available in 2”, 2.5”, 3” sizes (50.8mm, 63.5mm and 76.1mm Outside Diameters).

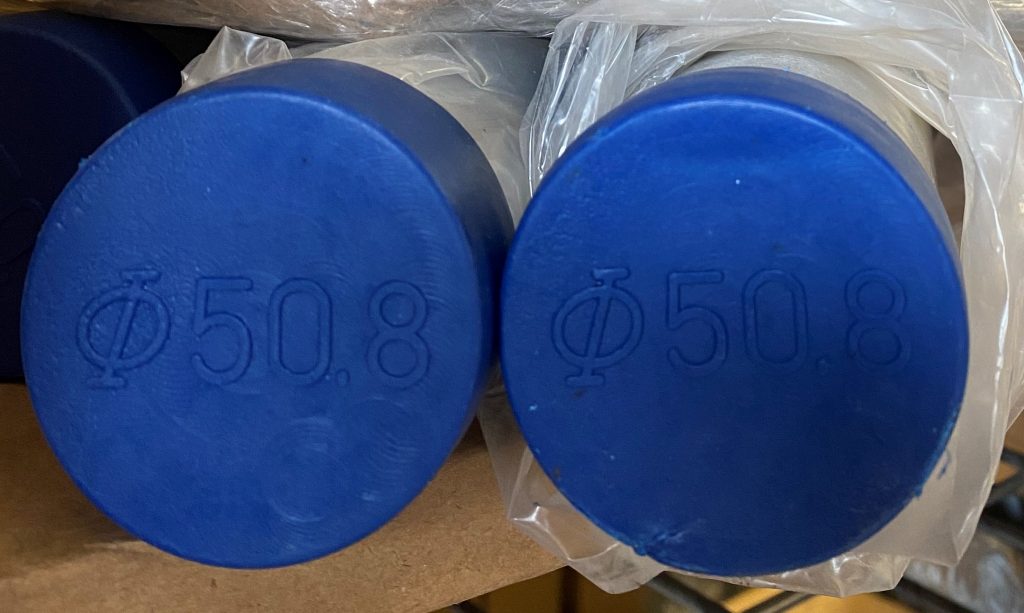

Supplied clean, deburred and wrapped with end caps ready for installation.

Open Filquip SS304 Long Radius Tube Bends Brochure

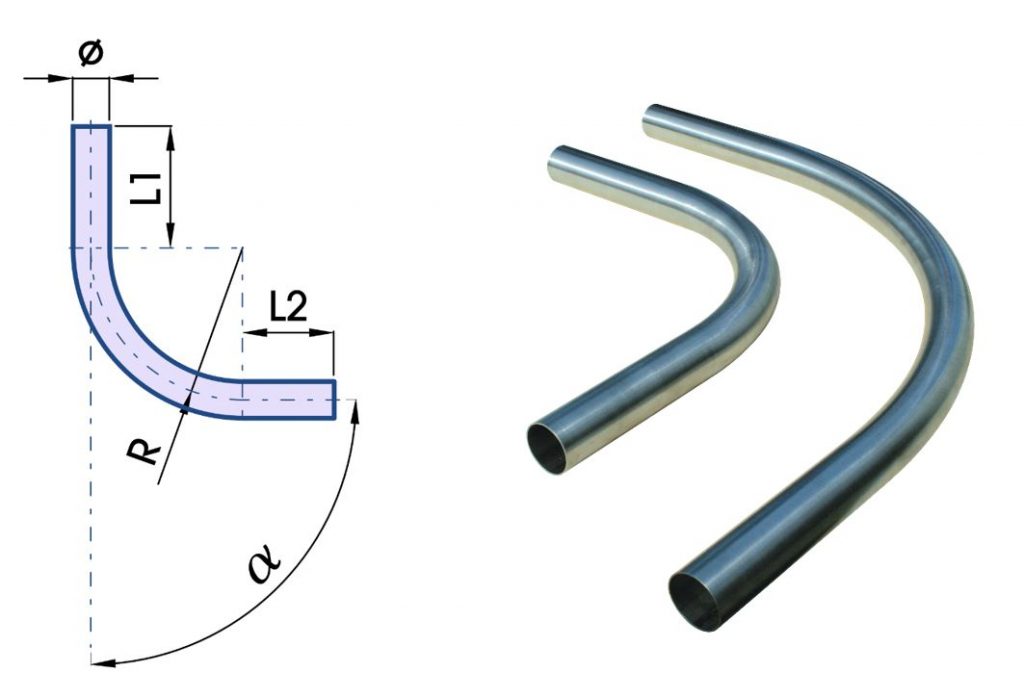

Stainless Steel Long Radius Tube Bends Ex Stock

Diameter 2” 2.5” 3”
50.8mm 63.5mm 76.1mm
Wall thickness 1.6mm 1.6mm 2.0mm
Angle α 90°
Radius R 500mm
Tail Length L1 200mm
L2 200mm
Pipe end Internal Chamfer



Size Part No.
Stainless Steel Bend 50.8mm BC5W05081505902
Stainless Steel Bend 63.5mm BC5W063515050902
Stainless Steel Bend 76.1mm BC5W076120050902
Available ex stock from Filquip in Brisbane

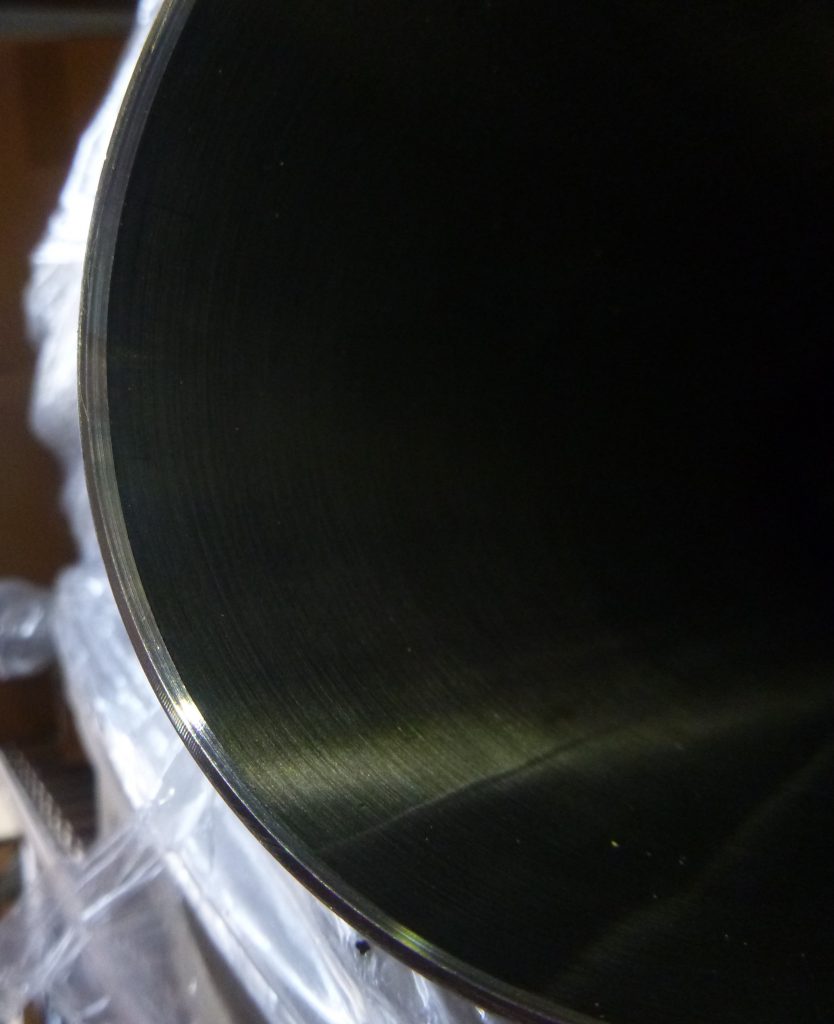

Filquip Deburred Stainless Steel tube bends
