Sugar Silo Bin Activators

Sugar Silo Bin Activators

Filquip has specified and supplied two new Sugar Silo Bin Activators with IECEX Hazardous Area Rating.

The following specifications were included for the Bin Activators

  • Model BA.2.2.210.
  • Stainless Steel 304 with Silking 240 Internal Finish.
  • Fitted with MVE700/3-E IECEX DIP Rated Electrical Vibrators.
  • SINT-AL Food grade polymer gasket material.

These Bin Activators ensures a consistent mass flow of Sugar out of the storage silos into the sugar hydrator systems below (though the Filquip supplied Slide Gate Valve and Rotary Metering Valve Systems).

View the Filquip Bin Activators Range

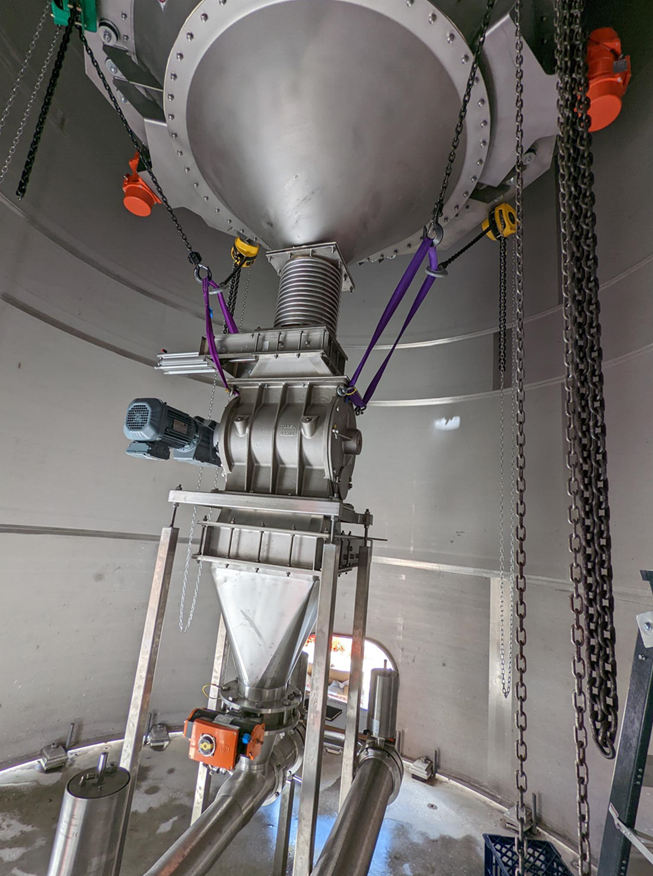

The following photo was taken during the installation phase:

Sugar Silo Bin Activator in Stainless Steel
