Microbatch Volumetric Screw Feeders

Filquip supplies WAM Microbatch Volumetric Screw Feeders (MBF and MBH) to all industries for a range of powders and granular materials. Microbatch Screw Feeders are commonly using in Lime Dosing, Soda Ash Dosing, Polymer Dosing, Powder Activated Carbon Dosing (PAC dosing), DOT Dosing and Zeolite Dosing Systems.


Dosing and Metering Volumetric FeedersWAM Microbatch feeders MBFMicrobatch Volumetric Screw Feeders MBF

The MBF range of Microbatch Volumetric Screw Feeders provide accurate volumetric feeding of powder and granular materials.

The MBF Microbatch Screw Feeder for continuous volumetric feeding of powdery or granular materials consists of a Stainless Steel or Reinforced Polymer Body, a horizontally mounted rotating agitator tool, a feeder screw, a feeder pipe enclosing the protruding feeder screw and one geared motor drive unit each for agitator and feeder screw.

WAM has tested product flow and material stress to establish optimum body geometry for feeding powders and granules, even those that tend to clog.
On request, MBF series Micro-Batch Feeders are supplied in food-grade versions with both FDA and EN- approval.

  • Stainless steel body, Agitator tool and Feeder screw.
  • Various agitator tool and feeder screw attachments to achieved desired flow rates.
  • Available with Horizontal or Vertical spout outlets.
  • Available with food-grade and Hazardous Zone Rated versions.
  • Three standard body sizes, Throughputs of up to 6m³ / hr.
  • Integration with a loss in weight system or VSD can provide automated accurate batching systems.
  • Minimal clearance between screw flight and feeder pipe for high accuracy.
  • Simple and quick cleaning due to non-stick SINT engineered polymer lining and quick access panel.

Open Volumetric Microbatch Feeders Brochure


MBH026 Volumetric Screw Dosing FeederMBH026 Volumetric Micro Additive Dosing FeederMicrobatch Volumetric Screw Feeders MBH

The MBH range of Microbatch Volumetric Screw Feeders provide accurate volumetric feeding of powder and granular materials with an entire body manufactured from Stainless Steel 316 for an internal finish that is smooth and hygienic. The MBH Feeders have FDA and ES 1935/2004 food use approval.

The MBH Microbatch Screw Feeder for continuous volumetric feeding of powdery or granular materials consists a horizontally mounted rotating agitator tool, a feeder screw, a feeder pipe enclosing the protruding feeder screw. The MBH Series uses one motor and lubrication free gearbox to drive both the agitator and feed screw.

WAM has tested product flow and material stress to establish optimum body geometry for feeding powders and granules, even those that tend to clog.

  • Stainless steel 316 body, Agitator tool and Feeder screw (multiple feed screw types included as standard).
  • Various agitator tool and feeder screw attachments to achieved desired flow rates.
  • Available in Hazardous Zone Rated versions.
  • Multiple standard body sizes with throughputs of up to 6m³ / hr.
  • Integration with a loss in weight system or VSD can provide automated accurate micro dosing of ingredients and chemicals.
  • Minimal clearance between screw flight and feeder pipe for high accuracy.
  • Seamless internal chamber design and transparent access hatch

Open Volumetric Microbatch Feeders Brochure

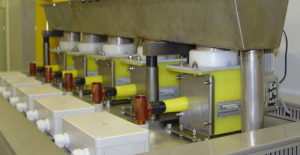

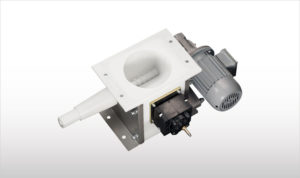

Flexflo Mini Microbatch Feeders MBW

Microbatch volumetric feeders

Screw Feeder

MBW Microbatch Volumetric Feeders are  suitable for screw feeding free or moderately flowing materials which do not tend to pack under pressure in a variety of industries, among which plastics processing, animal feed milling, as well as waste water and drinking water treatment.

MBW Mini Microbatch Feeders consist of a SINT engineering polymer FLEXFLO body with integrated feeder outlet pipe, a feeder screw and a gear motor drive unit.

The SINT engineered polymer FLEXFLO body, with its particular geometry, ensures constant material flow and dosing through the feeder screw.

  • SINT Engineered Polymer body, Stainless Steel or Polymer Agitator tool and Feeder screws.
  • Various agitator tool and feeder screw attachments to achieved desired flow rates.
  • Three standard body sizes, Throughputs of up to 0.8m³ / hr.
  • Integration with a loss in weight system or VSD can provide automated accurate batching systems.
  • Minimal clearance between screw flight and feeder pipe for high accuracy.
  • Simple and quick cleaning due to non-stick SINT engineered polymer lining.
  • Horizontal or Vertical Outlet Options.

Open MBW Flexflow Mini Microbatch Feeders Brochure
