Submersible Agitators and Mixers

Filquip offers a range of sizes for Submersible Agitators and Mixers by Speco/Sepcom. The WSA type submersible mixers are typically used in slurry processing, livestock waste, biogas and civil/industrial effluent processing plants.


Pit Submersible Agitators and Mixers Sepcom WSATank or Pit Submersible Agitators and Mixers WSAWSA Submersible Agitators and Mixers SEPCOM

The WSA type submersible agitators are designed to keep medium and low density liquid suspensions blended in tanks, pits or chambers.

The units consists of a coated cast iron motor casing with water proof enclosure for direct immersion in the slurry. The motor is a waterproof build and the Stainless Steel propeller is specifically designed for slurry processing, livestock waste, biogas and civil/industrial effluent.

  • Provides efficient mixing and blending up to 40m.
  • Drive power options from 1.5kW to 7.5kW depending on tank/pit size agitation requirements.
  • High performance mechanical seals are included as standard along with a leakage sensor.
  • Economical purchase price.
  • Low running costs and simple maintenance.
  • Wide range of mounting options and accessories available.

Open WSA Submersible Agitators and Mixers Brochure

Tank Submersible Mixer WSA Influence

The power size of the agitator is generally calculated based on the volume of the tank/pit and the type of slurry mix that we wish to keep in suspension.

  • Civil Slurries = 40 W/m³
  • High Fibre Content Waste = 80 W/m³
  • High Sand Content Waste = 200 W/m³

An essential advantage of a horizontally operating submersible mixers compared to conventional mixers is its ability to operate in different directions. Allowing the currents required  in proportion to the slurry mix composition can be optimised.

Submersible Mixers Circular Pits Sepcom

  • A circular rotating current the the simplest type to keep a mix with a high percentage of solids in suspension as a relatively high current speed can be achieved in a short operating time (Some heavier particles can settle in the centre of the tank).
  • Using an angle of 7 – 10 degrees an efficient round tank mixing pattern can be achieved when the height
    of the fluid in the tank is within the ratio of 0.3 to 1 times the diameter of the tank.
  • Rectangular and Square Tanks can be mixed in a length ways manner if the width of the tank is less than 5 to 8 times the diameter of the mixer propeller.
  • For larger rectangular/square tanks a cross flow current is preferred.
  • If the size of the tank if very large then several mixers are recommended to be utilised.

Pit Submersible Agitator and Mixer Dimensions WSA

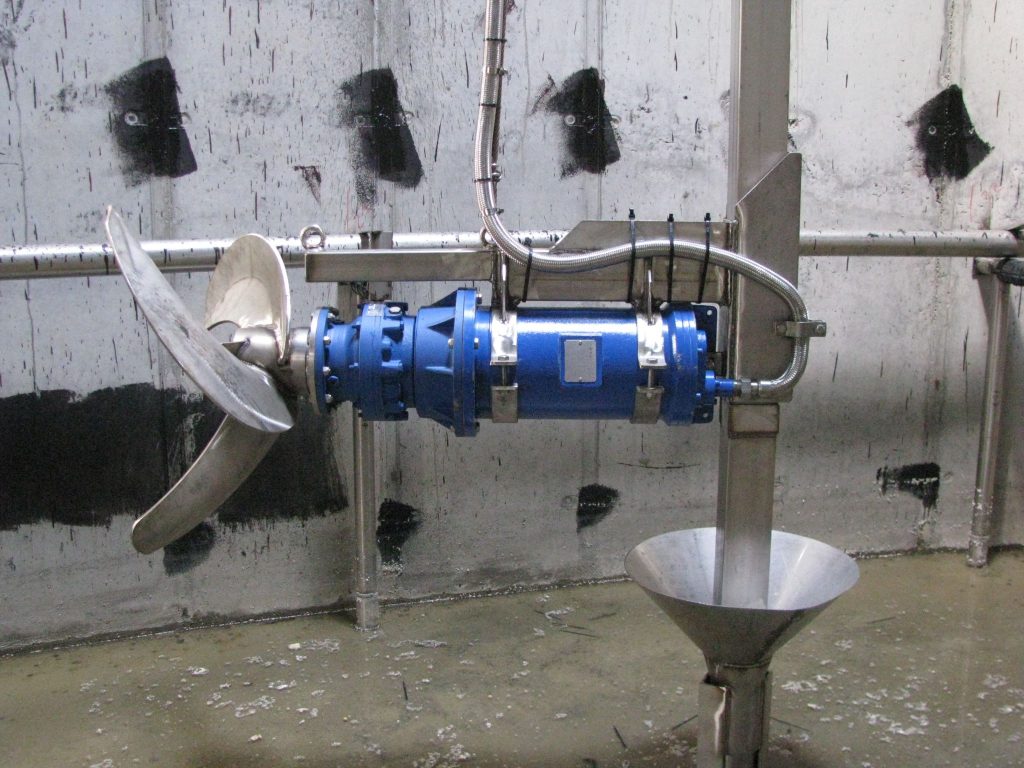

Submersible Pit Agitator




Submersible Chopper Pump WSPSubmersible Macerator Pump Speco Sepcom WSPWSP Submersible chopper pumps SEPCOM

The WSP Submersible Chopper pumps are designed to pump slurry liquids containing solid lumps or fibres including sewage, waste water, livestock waste, biogas digestate and civil/industrial effluents.

The units consists of a waterproof outer steel shell for direct immersion in the slurry/liquid waste. The motor is a waterproof build and the hardened cast iron chopper blade is specifically designed for sewage, slurry processing, livestock waste, biogas digestate and civil/industrial effluent.

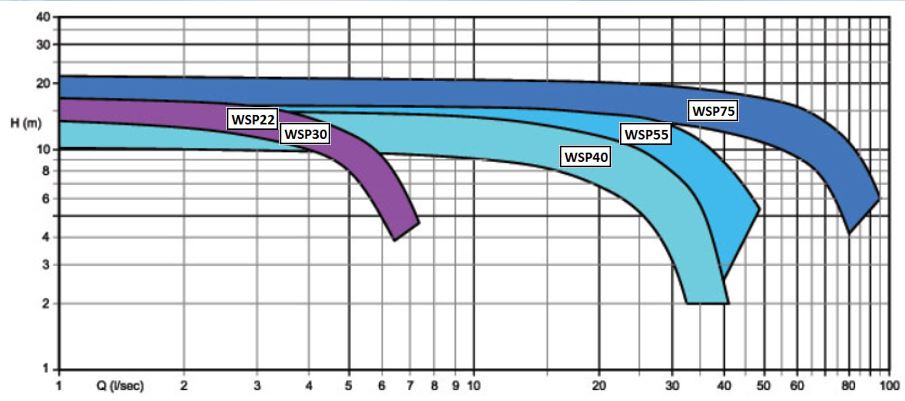

  • Throughput rates available up to 90 L/s (324 m³ / hr).
  • Pumping up to a maximum head of 21.5m.
  • Drive power options from 2.2kW to 7.5kW depending on throughput requirements.
  • Outlet sizes in DN80 and DN100mm.
  • Vertical or Horizontal mounting options.
  • High performance mechanical seals are included as standard along with a leakage sensor.
  • Economical purchase price.
  • Low running costs and simple maintenance.
  • Wide range of mounting options and accessories available.

Open WSP Submersible Chopper Pumps Brochure



Submersible Chopper Pump Dimensions
