Pipe Couplings

Filquip is a specialist supplier of pneumatic conveying systems and their components including Pipe Couplings (Also known as Morris Couplings). Filquip is an Australian distributor for Eurac couplings and clamps for pipe and tube.

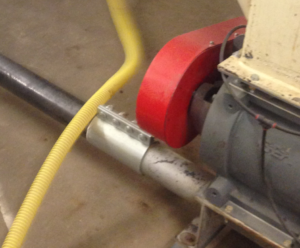

All Filquip supplied pipe couplings come with Conductivity strip and conductivity ring which wraps around the location where the two pipe ends meet. Installation of the Eurac clamps requires no special preperation to pipe ends other than a clean cut with de-burring.

Open Pipe Couplings Datasheet


Pipe CouplingsPipe ClampsPipe Couplings L – Series

The Eurac L Series Pipe Couplings are 100mm long 2 bolt couplings designed for vacuum or pressure conveying systems.

  • Sizing from 38.1mm to 114.3mm in diameter. (Sizing from 1.5″ to 4″ in diameter).
  • Suitable for all dilute phase pneumatic and vacuum conveying operations.
  • High working pressure.
  • Standard build comes with outside skin in 340 Stainless steel, SS304 Conductivity Strip, Zinc Plated Bolts and Black SBR Gasket for -30 Deg C to +80 Deg C.
  • Available in Full Stainless Steel 304L.
  • Available with White FDA Food Grade Approved NBR gasket for -20 Deg C to +110 Deg C.
  • Available with Blue Silicon Gasket for -40 Deg C to +180 Deg C.
  • Available with Silicone VMQ gasket for -65 Deg C to +225 Deg C.
  • Available with Viton FPM gasket for -20 Deg C to +250 Deg C.
  • Available with copper conductivity strip (CU A1).
  • Designed to directly fit all standard sizes of Pipe, Tube, Filquip Borosilicate Glass Pipes and Glass wear bends.
  • Available with side bar clamps as option extra.

Filquip Glass Bends


Morris ClampBorosilicate Sight GlassPipe Couplings M – Series

The Eurac M Series Pipe Couplings are 150mm long 3 bolt couplings designed for vacuum or pressure conveying systems.

  • Sizing from 38.1mm to 114.3mm in diameter. (Sizing from 1.5″ to 4″ in diameter).
  • Suitable for all lean phase pneumatic and vacuum conveying operations.
  • High working pressure.
  • Standard build comes with outside skin in 340 Stainless steel, SS304 Conductivity Strip, Zinc Plated Bolts and Black SBR Gasket for -30 Deg C to +80 Deg C.
  • Available in Full Stainless Steel 304L.
  • Available with White FDA Food Grade Approved NBR gasket for -20 Deg C to +110 Deg C.
  • Available with Blue Silicon Gasket for -40 Deg C to +180 Deg C.
  • Available with Silicone VMQ gasket for -65 Deg C to +225 Deg C.
  • Available with Viton FPM gasket for -20 Deg C to +250 Deg C.
  • Available with copper conductivity strip (CU A1).
  • Designed to directly fit all standard sizes of Pipe, Tube, Filquip Borosilicate Glass Pipes and Glass wear bends.
  • Available with side bar clamps as option extra.

Pipe ClampsEurac tube clampPipe Couplings HL & H – Series

The Eurac HL & H Series Pipe Couplings are 150mm or 200mm long, 3 or 4 bolt couplings designed for vacuum or pressure conveying systems for heavy concentration particles.

  • Sizing from 38.1mm to 219.1mm in diameter. (Sizing from 1.5″ to 8″ in diameter).
  • Suitable for all pneumatic and vacuum conveying operations.
  • High working pressure.
  • Standard build comes with outside skin in galvanised steel, SS304 Conductivity Strip, Zinc Plated Bolts and White NBR gasket for -20 Deg C to +110 Deg C.
  • Available in Full Stainless Steel 304L.
  • Available with Black SBR Gasket for -30 Deg C to +80 Deg C.
  • Available with Blue Silicon Gasket for -40 Deg C to +180 Deg C.
  • Available with Silicone VMQ gasket for -65 Deg C to +225 Deg C.
  • Available with Viton FPM gasket for -20 Deg C to +250 Deg C.
  • Available with White FDA Food Grade Approved NBR gasket -20 Deg C to +110 Deg C.
  • Available with copper conductivity strip (CU A1).
  • Designed to directly fit all standard sizes of Pipe, Tube, Filquip Borosilicate Glass Pipes and Glass wear bends.
  • Available with side bar clamps as option extra.

Stif Pipe Couplings3 bolt pipe clampPipe Couplings HX – Series

The Eurac HX Series Pipe Couplings are  200, 250 or 300mm long in 4, 5 of 6 bolt  couplings designed for large diameter pipework in vacuum or pressure conveying systems.

  • Sizing from 200mm to 355.6mm in diameter. (Sizing from 8″ to 14″ in diameter).
  • Suitable for all pneumatic and vacuum conveying operations.
  • High working pressure.
  • Standard build comes with outside skin in galvanised steel, SS304 Conductivity Strip, Zinc Plated Bolts and White NBR gasket for -20 Deg C to +110 Deg C.
  • Available in Full Stainless Steel 304L.
  • Available with Black SBR Gasket for -30 Deg C to +80 Deg C.
  • Available with Blue Silicon Gasket for -40 Deg C to +180 Deg C.
  • Available with Silicone VMQ gasket for -65 Deg C to +225 Deg C.
  • Available with Viton FPM gasket for -20 Deg C to +250 Deg C.
  • Available with White FDA Food Grade Approved NBR gasket -20 Deg C to +110 Deg C.
  • Available with copper conductivity strip (CU A1).
  • Designed to directly fit all standard sizes of Pipe, Tube, Filquip Borosilicate Glass Pipes and Glass wear bends.
  • Available with side bar clamps as option extra.

Torex Pipe ClampsPipe CouplingTorex GT Pipe Couplings

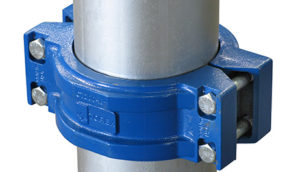

The Torex GT Pipe Coupling has been designed to join together two pipes with plain ends in a safe, quick and rigid manner.

GT Pipe Couplings consist of two cast iron casings with heavy-duty jaws to secure the pipes together. The two semi-casings are joined together by strong bolts and nuts positioned on the two ends and the seal is created by gaskets made from EPDM or Food Grade Silicone.

  • Sizing from 40mm to 200mm in diameter.
  • Suitable for all positive pressure pneumatic and vacuum conveying.
  • -0.5 Bar Negative Operating pressure rated.
  • +7 bar Positive Operating pressure rated.
  • Operating Temperature from -40 Deg C to + 110 Deg C
  • Quick and easy to install with no welding time or costs
  • No pressure drop along the conveying line

Open Torex GT Pipe Couplings Brochure
